Best quality Desktop Cnc Laser Cutter - TS1325 CO2 large format laser cutting machine – Gold Mark

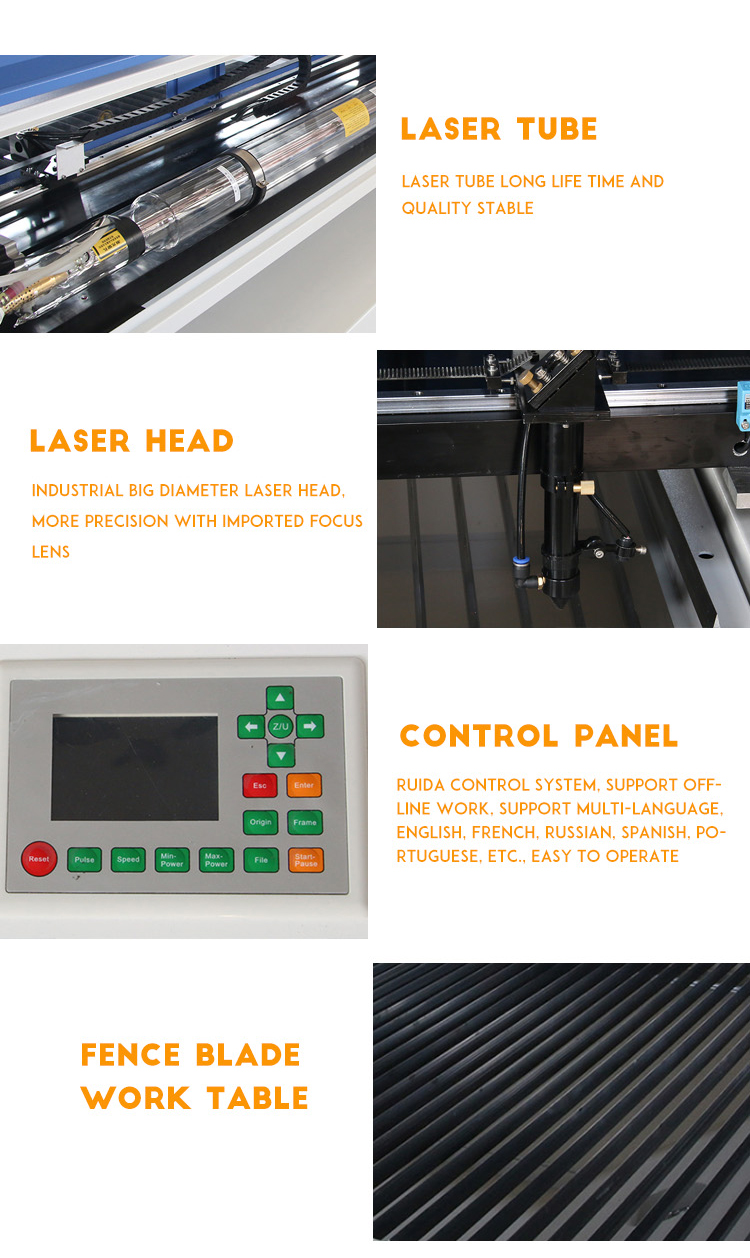

Features of laser cutting machine:   1. Professional Ruida 6442S laser control system,precise,stable and fast. 2. Brand laser tube,good spot quality,stable output power,good engraving effect. 3. Usb2.0 interface,support offline work. 4. Color LCD display,support multi-language operation. 5. Taiwan PMI linear guide rail makes the optical path run more smoothy and the engraving and cutting effect is much more better. 6. The cabinet design is more sturdy and equipped with a waste collection drawer for easy collection of cutting waste. 7. Electric UP&Down platform,convenient for customers to place thick materials. 8. Optional rotary attachment,convenient for customers to engrave the required materials. 9. Large working area,suitable for engraving and cutting large area materials. Product parameters

Model

TS1325 laser engraving and cutting machine

Colour Blue and white
Working Table Size 1300mmm *2500mm
Laser Tube Sealed CO2 glass Tube
Working Table Blade platform (aluminum blade platform optional)
Laser Power 80w/100w/130w/150w
Cutting Speed 0-100 mm/s
Engraving Speed 0-600mm/s
Resolution ±0.05mm/1000DPI
Minimum Letter English 1×1mm (Chinese Characters 2*2mm)
Support Fils BMP,HPGL,PLT,DST and AI
Interface USB2.0
Software Rd works
Computer system Windows XP/win7/ win8/win10
Motor 57 Stepper Motor
Power Voltage AC 110 or 220V±10%,50-60Hz
Power cable European Type/China Type/America Type/UK Type
Working Environment 0-45℃(temperature)      5-95%(humidity)
Position system Red-light pointer
Cooling way Water cooling and protection system
Packing Size 2850*1900*1070mm
Gross Weight 850KG
Cutting thickness Please consult sales
Package Standard plywood case for export
Warranty All life free tech support, two year warranty, except consumables

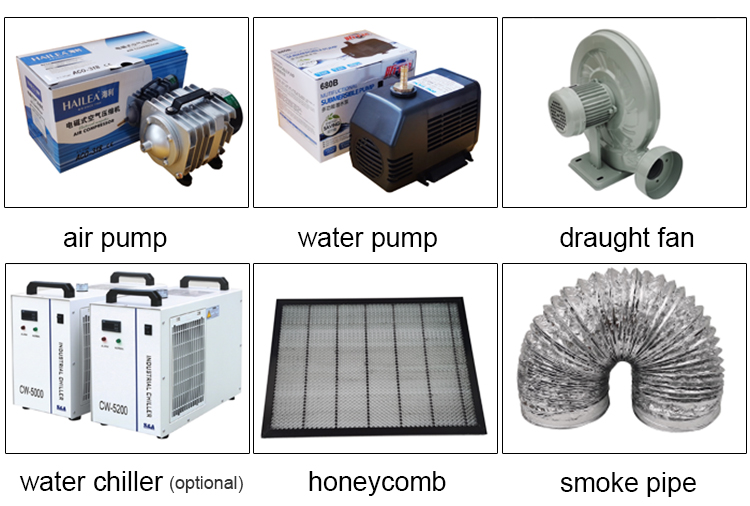

Free accessories Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable
Optional parts Spare Focus lensSpare Reflecting mirrorSpare Rotary for cylinder materials

Industrial Water Chiller

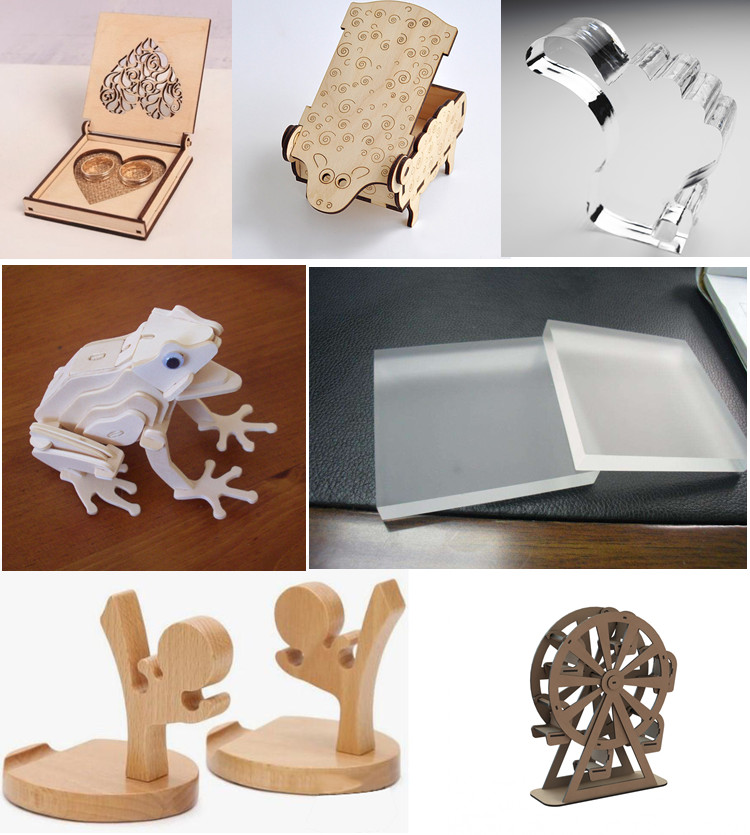

  Product details   Product Accessories   Applications   Applcation industrial: Advertising signs,craft gifts,crystal jewelry,paper cutting technology,architectural models,lighting,printing and packaging,electronic appliances,clothing bags,photo frame production and other industries. Application Materials: Wood products,Plywood,Acrylic,Plastic,Cloth,Leather,Paper,Rubber,Bamboo,Marble,Double layer plastic,glass,wine bottles etc.
