Lowest Price for Enclosure Fiber Laser Marking Machine - Large Format Seamless Splicing Gantry Type Fibre Optic Marking Machine – Gold Mark

Product Description The gantry type fibre optic marking machine is a new seamless stitching marking machine developed and launched mainly for large format continuous marking. The gantry type fiber optic marking machine with advanced aluminum alloy slide rail, three-dimensional directional movement of the vibration lens and marking head, to achieve a large surface seamless splicing marking. With extremely fast marking speed, high precision, stability and reliability, the core accessories are imported brands to ensure that the service life of the machine can reach 100,000 hours.
Model
Fiber laser marking machine
Power
20W/30W/50W
Laser Brand
Raycus (Maxphotonics/IPG as optional)
Galvanometer
Sino
Main board
Beijing JCZ
Software
EZCAD 2.14.10
Marking Area
1000mm*1000mm
Marking Depth
≤0.5mm
 Marking Speed
≤7000mm/s
Minimum Line Width
0.012mm
Life-span of Fiber Laser Module
100, 000hours
Beam Quality
M2 <1.5
Output Power of Laser
10%~100% continuously to be adjusted
System Operation Environment
Windows 7/8/10
Cooling Mode
Air cooling--Built-in
 Temperature of Operation
15ºC~35ºC
 Power Input
220V / 50HZ / single phase or 110V / 60HZ / single phase
Power Requirement
<600W
Communication Interface
USB
Optional (Not free of charge)
Rotary Device, Moving Table, other customized Automation

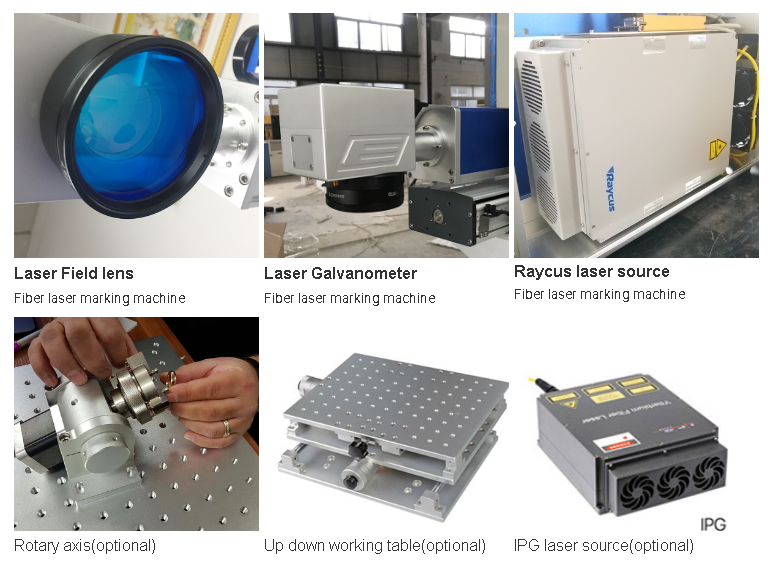

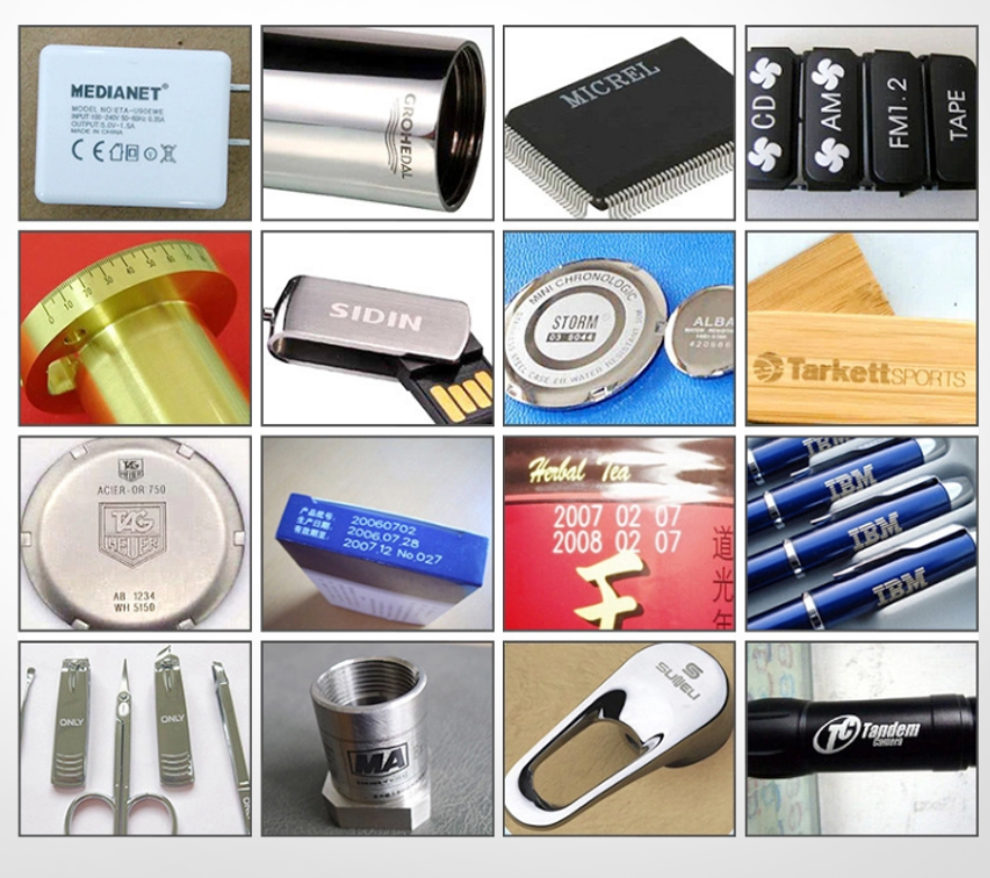

Features 1. Desktop design,1000*1000mm work area,comes with a cabinet worktable. 2. High quality light source,good spot quality,uniform optical power density,stable output optical power,nolight leakage,high anti-reflection. 3. Using high speed scanning galavanometer,small size,fast speed,good stability. 4. Comes with a computer stand,easy to install computer display. Fiber laser marking machine Samples Applicable Industries: Precision instruments, computer keyboards, auto parts, plumbing parts, communications equipment, medical equipment , bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances, watches, molds, gaskets and Seals, data matrix, jewelry, cell phone keyboard, buckle, kitchenware, knives, cooker, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, signs molds, elevator equipment, wire and cable , Industrial bearings, building materials, hotel kitchen, military, pipelines. Tobacco industry, bio-pharmaceutical industry, liquor industry, food packaging, beverage, health care products, plastic buttons, bathing supplies, business cards, Clothing accessories, cosmetics packaging, car decoration, wood, logos, characters, serial number, bar code, PET, ABS, pipeline, advertising logo and other non-metallic industries. Applied Materials: 1. All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition 2. Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material
